Sharp MX-7580N

Never beaten on price, Request a quote now!

Description

The MX-7580N is a high performance A3 colour MFP designed for the high end office walk-up environment that requires professional finishing, sophisticated workflow and high productivity. Capable of up to 75 pages per minute in colour and black & white with true 1200 x 1200 dpi resolution, fast 200 ipm (2 sided) colour scan speed and standard 250 sheet DSPF, this MFP delivers high document quality, flexibility and enhanced reliability.With the embedded Fiery print server option this MFP becomes a powerful integrated solution for managing professional in-house and busy on-demand printing.Features such as the cutting edge user interface designed for easy operation; extra-large paper capacity and intermediate toner hopper – perfect for long runs and continual use during toner replacement; an impressive range of high volume professional finishing options; enhanced capabilities for office solutions and network and data protection for secure information sharing, makes the MX-7580N perfect for anyone who’s serious about creating professional looking documents in-house with effortless operation and ease-of-use.

Additional information

Features

Print, Copy, Scan, Fax, File
Pages per minute: 75 B/W 75 Colour
Paper capacity: Std 3100 Max 8500 sheets
High speed, high volume productivity with a wide range of professional finishing options

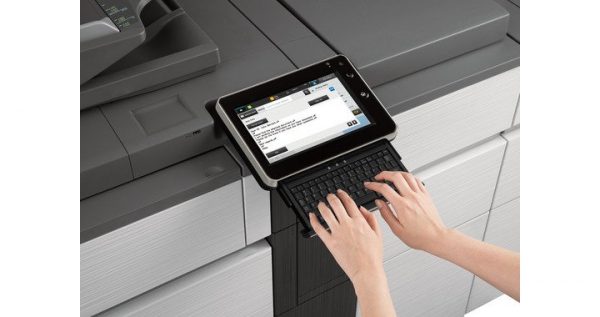

Large tiltable 10.1” colour LCD panel with finger swipe touch control
Superior image quality with Developer Refresh System
Industry-leading security solutions for ultimate data/document protection
Embedded Fiery Print Server option

Specifications

General
Engine speed Colour ppm (A4) 75
Engine speed B/W ppm (A4) 75
Engine speed Colour ppm (A3) 33
Engine speed B/W ppm (A3) 33
Paper size: Min.-Max. A5R – SRA3
Paper weight (g/m2) 55-300
Paper capacity:Std (sheets) 3100
Paper capacity: Max. (sheets) 8500
Warm Up Time (sec.) 55
Memory general min/max (MB) 6144
Memory printer min/max (MB) 6144
Harddisk STD
Harddisk capacity (GB) 1024
Duplex STD
Power requirements – rated local AC voltage (Hz) 200-240V, 50/60Hz
Power consumption (kW) 3, 84
Dimensions (mm) 845 x 844 x 1221
Weight (Kg) 211
Copier
Original paper size (Max.) A3
First copy out time Colour (sec.) 5, 6
First copy out time B/W (sec.) 4.0
E-sort Std yes
E-sort Opt. no
Continuous copy (Max. copies) 9999
Resolution Scan B/W (dpi) 600 x 600, 600 x 400
Resolution Scan Colour (dpi) 600 x 600
Resolution Print (dpi) 1200 x 1200, 600 x 600, 9600 (equivalent) x 600
Gradation (equivalent levels) – B/W 2
Gradation (equivalent levels) – Colour 256
Zoom range (%) 25-400
Preset copy ratios 10 (5R/5E)
Document Feeder
Original capacity (sheets) 150
Scanner
Network Scanner (Standard / Option) STD
Scan method Push scan and Pull scan yes
Resolution push scan (dpi) 100, 150, 200, 300, 400, 600
Resolution pull scan (dpi) 75, 100, 150, 200, 300, 400, 600, 50-9600
File formats TIFF, PDF, PDF/A-1b, encrypted PDF, XPS, compact PDF, JPEG, XPS, searchable PDF, Office Open XML, (pptx, xlsx, docx), txt (TXT), rich text (RTF)
Scanner utilities Sharpdesk
Scan destinations Desktop yes
Scan destination FTP, Email yes
Scan destination Network folder yes
Scan destination USB memory yes
Document filing
Document filing (Standard / Option) STD
Document filing capacity- main and custom folders (pages) 35000
Document filing capacity- quick file folder (pages) 10000
Stored jobs Copy, print, scan, fax transmission
Storage folders Quick file folder, main folder, custom folder (max. 1000)
Confidential storage yes
Printer
Resolution (dpi) 1200 x 1200, 600 x 600
Enhanced resolution (dpi) –
Network Printer (Standard / Option) STD
Interface Std/Opt STD USB 2.0, 10Base-T/100Base-TX/1000Base-T
Supported OS Standard Windows Server 2008, 2012, 2012R2, 2016, Windows Vista. Windows 7, 8.1, 10, Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, macoS Sierra
Supported OS Options –
Network protocols TCP/IP
Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, Novell Printserver application with NDS and Bindery, FTP for downloading print files, EtherTalk printing, IPP
PDL Std/Opt STD PCL6, Genuine Adobe PS3
Available fonts 80 (PCL), 139 (PS3)
Fax
Fax (Standard / Option) OPT
Compression method MH/MR/MMR/JBIG
Communication protocol Super G3/G3
Transmission time (sec) Less than 3
Modem Speed (bps) 33.600 – 2.400
Transmission resolution 203, 2 x 97, 8 / 406, 4 x 391
Document Size (Min) A5
Document Size (Max) A3
Memory (MB) 1024
Grey Scale levels 256
Dial Registration; rapid/speed dial 2000
Broadcast Transmission (max. destinations) 500

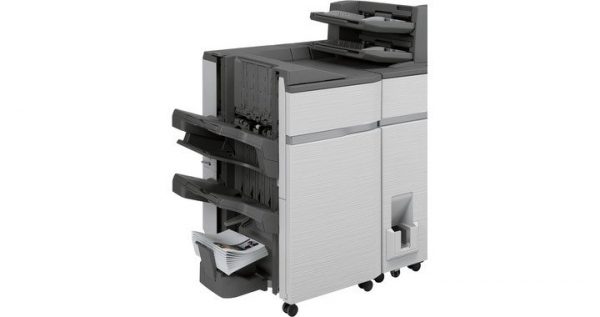

Finishing
Output Capacity Max. 4250
Staple Capacity (sheets) Max. 100
Saddle Stitch OPT
Off-set shifting STD
Hole punch OPT
