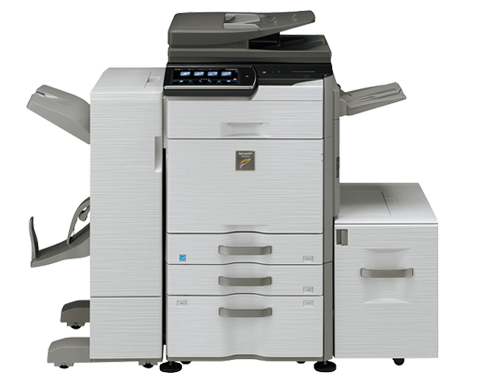

Sharp MX-2630N

Request fast quote. No obligation pricing in 20 minutes.

Description

The MX-2630N is ideal for any busy workgroup that needs high performance, high quality colour and versatility. Offering a variety of innovative and productivity enhancing features including an intuitive user interface, a standard “Print Release” pull printing solution, high level security features as well as a range of connectivity options including cloud and mobile.

The standard Print Release function enables users to send and store documents to a main MFP, which acts as a server, allowing print jobs to be securely released at up to five connected network-ready devices. Optional workflow enhancing features include Single Sign-On cloud connectivity, mobile connectivity via Wi-Fi and NFC, and USB direct printing of MS Office files.

The standard 7” multi-touch colour LCD control panel provides the ability to drag and drop frequently used icons for simple customisation of the home screen. Everyday operation is simple and intuitive; just touch, tap, pinch and spread or swipe for instant access to every feature, function and setting including an advanced preview feature.

Print and copy speeds of up to 26 ppm in colour and black & white, a built-in 100-sheet Reversing Feeder and a scan speed of up to 80 ipm all help to boost efficiency and productivity; while 600 x 600 dpi print resolution, our auto process control and developer refresh system ensure consistently high image quality. A maximum paper capacity of 6,300 sheets and support for a wide range of media (up to SRA3 and 300 gsm) enables this device to handle varied output requirements with ease. Plus, a variety of finishing options such as saddle stitching, manual and stapleless stapling add further versatility.

The MX-2630N has layer upon layer of robust but unobtrusive security, with TSL/ISL, IPsec and network protocol filtering. Other standard security features include secure erasure, strong encryption and administrator password protection. Plus, S/MIME for encrypting emails and digitally signing them. For even greater security the optional Data Security Kit (DSK) gives your customers a full suite of high security features including the Document Control feature, and the advanced DSK mode which enables an even higher protection profile.

The Energy Star-certified MX-2630N uses Sharp’s latest energy-saving technology. Our low melt toner and quick-heating fuser unit reduce power consumption and you can configure automatic power on/off settings for further savings. In addition, the automatic toner cartridge eject function ensures all toner has been consumed, thereby saving resources.

Additional information

Features

Print, Copy, Scan, Fax, File
Pages per minute: 26 B/W 26 Colour
Paper capacity: Std 600 Max 6600 sheets
Cloud-ready as standard – seamlessly integrates with Cloud applications
Large 10.1" LCD control panel with multi-touch screen for ease of use
Standard Wireless LAN Adaptor enables connection to wireless network
Industry-leading security solutions for ultimate data/document protection
Environmentally advanced design with standard advanced Eco functions

Specifications

General
Engine speed Colour ppm (A4) 26
Engine speed B/W ppm (A4) 26
Engine speed Colour ppm (A3) 14
Engine speed B/W ppm (A3) 14
Paper size: Min.-Max. A5R – A3W
Paper weight (g/m2) 60 – 220
Paper capacity:Std (sheets) 600
Paper capacity: Max. (sheets) 6600
Warm Up Time (sec.) 18
Memory general min/max (MB) 4096
Memory printer min/max (MB) –
Harddisk STD
Harddisk capacity (GB) 320
Duplex STD
Power requirements – rated local AC voltage (Hz) 200 – 240V, 50/60Hz
Power consumption (kW) 1, 84
Dimensions (mm) 608 x 659 x 834
Weight (Kg) 76
Copier
Original paper size (Max.) A3
First copy out time Colour (sec.) 8, 1
First copy out time B/W (sec.) 5, 9
E-sort Std yes
E-sort Opt. no
Continuous copy (Max. copies) 999
Resolution Scan B/W (dpi) 600 x 600, 600 x 400, 600 x 300
Resolution Scan Colour (dpi) 600 x 600
Resolution Print (dpi) 9600 x 600
Gradation (equivalent levels) – B/W 2
Gradation (equivalent levels) – Colour 256
Zoom range (%) 25 – 400
Preset copy ratios 10
Document Feeder
Original capacity (sheets) 100
Scanner
Network Scanner (Standard / Option) STD
Scan method Push scan and Pull scan yes
Resolution push scan (dpi) 100, 150, 200, 300, 400, 600
Resolution pull scan (dpi) 75, 100, 150, 200, 300, 400, 60050 – 9600
File formats XPS, TIFF, JPEG, PDF, encrypted PDF, compact PDF, PDF/A-1b
Scanner utilities Sharp OSA Network Scanner Tool, Sharpdesk, Sharpdesk Mobile
Scan destinations Desktop yes
Scan destination FTP, Email yes
Scan destination Network folder yes
Scan destination USB memory yes
Document filing
Document filing (Standard / Option) STD
Document filing capacity- main and custom folders (pages) 20000
Document filing capacity- quick file folder (pages) 10000
Stored jobs Copy, print, direct print, scan, fax transmission
Storage folders Quick file folder, main folder, custom folder (max. 1000)
Confidential storage yes
Printer
Resolution (dpi) 1200 x 1200, 600 x 600, 9600 x 600
Enhanced resolution (dpi) –
Network Printer (Standard / Option) STD
Interface Std/Opt STD USB 2.0, 10Base-T/100Base-TX/1000Base-T
Supported OS Standard Windows XP, Windows Server 2003/2008/2008R2/2012, Windows Vista, Windows 7, Windows 8 Mac OS X 10.4/10.5//10.6/10.7/10.8
Supported OS Options –
Network protocols TCP/IP (IPv4 and IPv6), IPX/SPX (NetWare), NetBEUI, EtherTalk (AppleTalk)
Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, Novell Printserver application with NDS and Bindery, FTP for downloading print files, EtherTalk printing, IPP
PDL Std/Opt STD PCL6, Genuine Adobe PS3 emulation, OPT XPS
Available fonts 80 (PCL), 136 (PS3)
Fax
Fax (Standard / Option) OPT
Compression method MH/MR/MMR/JBIG
Communication protocol Super G3/G3
Transmission time (sec) 3
Modem Speed (bps) 33.600 – 2.400
Transmission resolution STD 203, 2 x 97, 8 dpi / Ultra Fine 406, 4 x 391 dpi
Document Size (Min) A5
Document Size (Max) A3
Memory (MB) 1024
Grey Scale levels 256
Dial Registration; rapid/speed dial 2000
Broadcast Transmission (max. destinations) 500
Finishing
Output Capacity Max. 500 – 1000
Staple Capacity (sheets) Max. 50
Saddle Stitch OPT
Off-set shifting STD
Hole punch OPT

Brochure

Brochure Download

Colour or Mono

Colour

Device Type

MFP / MFD

Manufacturer

Sharp

Max Page Size

A3+ (SRA3)

Speed

26-35
